FWP2 | Full Cutoff LED Wall Pack - Power & CCT Selectable
The FWP2 Series full cutoff wall pack delivers powerful, energy-efficient illumination in a modern design. With adjustable wattage and color temperature (3000K, 4000K, 5000K), it adapts easily to a range of applications from office buildings and warehouses to campuses and retail complexes. Its die-cast aluminum housing and UV-stabilized lens ensure long-term durability in harsh outdoor environments. Offering up to 13,400 lumens, the FWP2 provides uniform light coverage that enhances safety and visibility. Optional features like photocell control, occupancy sensing, and emergency backup make it a flexible choice for any exterior lighting project.
Product Details
Specification:
Series No. | FWP2 |
Voltage | 120-277 VAC |
Dimmable | 1-10V dimming |
Light Source Type | LED chips |
Color Temperature | 3000K, 4000K, 5000K |
Power | 45W, 70W, 95W |
Light Output | 7000 lm, 11600 lm, 15000 lm |
Certifications | UL, DLC, IP65 |
Operating Temperature | -40°C to 40°C (-40°F to 104°F) |
Lifespan | 50,000 hours |
Warranty | 5 year |
Application | Building entryways, Pathways, Perimeter lighting, Security lighting |
Mounting | Junction box (No need to open driver box) |
Accessories | Photocell - Button (Optional), Occupancy Sensor (Optional), Emergency Backup Battery (Optional), Surface-Mounted Back Box (Optional) |

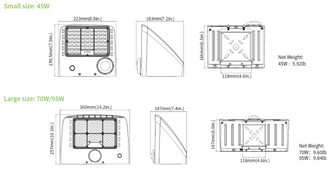

Dimensions:
Small Size (45W) | 8.80" x 7.90" x 6.60" in |
Large Size (70W / 95W) | 14.20" x 10.10" x 6.60" in |
