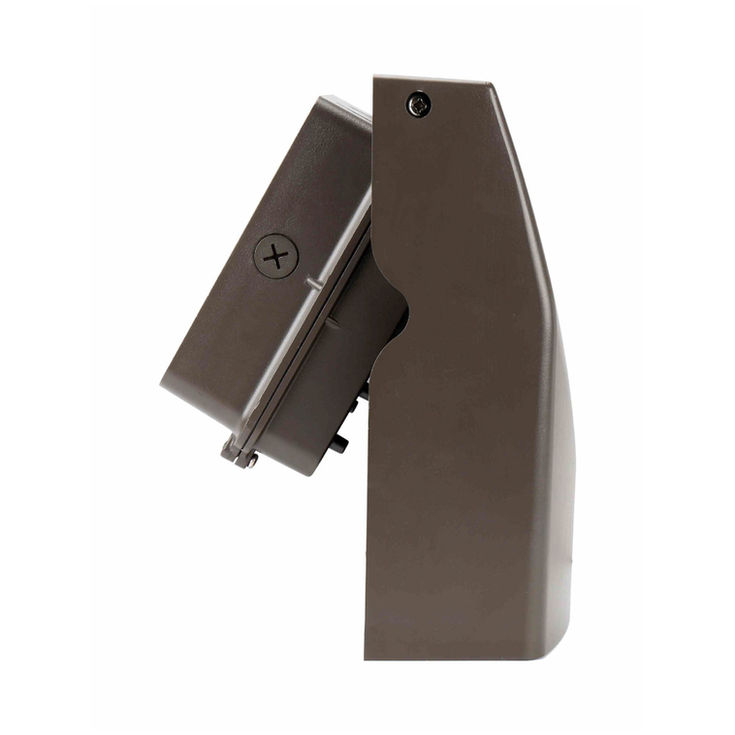

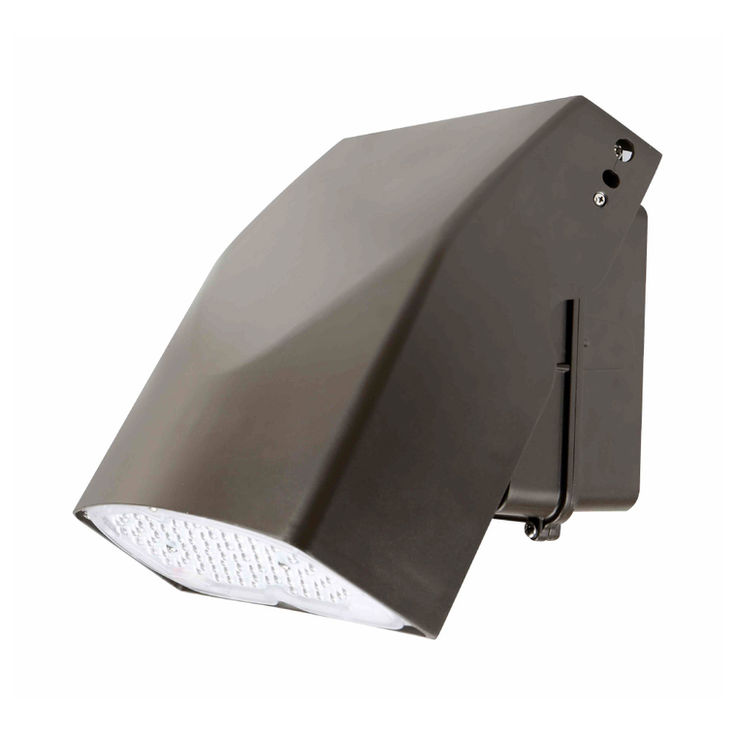

AWP1 | Adjustable Full Cutoff LED Wall Pack - Power & CCT Selectable
The AWP1 Adjustable Full Cutoff LED Wall Pack combines rugged durability with energy-efficient performance, making it perfect for hospitals, schools, malls, restaurants, and security areas. With IP65-rated housing and a silicone-sealed gasket, it keeps out dust and moisture while delivering uniform, glare-free illumination. Adjustable tilt from 0° to +90°, selectable wattages (27W–80W), and color temperatures (3000K, 4000K, 5000K), plus 0–10V dimming and an optional dusk-to-dawn photocell, let you tailor lighting for any space and save on energy costs. Easy wall or junction box installation, wide operating temperatures (-40°C to 40°C), and a 50,000-hour lifespan with a 5-year warranty ensure reliability for years. Upgrade your walkways, building entryways, and perimeter lighting with the AWP1 LED Wall Pack—efficient, versatile, adjustable, and built to last.
Product Details
Specification:
Series No. | AWP1 |
Voltage | 120-277 VAC |
Dimmable | 1-10V dimming |
Light Source Type | LED chips |
Color Temperature | 3000K/4000K/5000K |
Power | 27W, 40W, 67W, 80W |
Light Output | 3600 lm, 5300 lm, 9600 lm, 11200 lm |
Certifications | UL, DLC, IP65 |
Operating Temperature | -40°C to 40°C (-40°F to 104°F) |
Lifespan | 50,000 hours |
Warranty | 5 year |
Application | Building entryways, Pathways, Perimeter lighting, Security lighting |
Mounting | Junction box or Wall mount |
Accessories | Photocell - Button (Optional) |
Dimensions:
Small Size (27W / 40W) | 7.29" x 9.13" x 4.20" in |
Large Size (67W / 80W) | 10.07" x 11.02" x 5.09" in |
